DJI Agras T25

A little smaller. A little smarter.

DJI AGRAS T25 redefines standards for compact agricultural drones. Light and nimble, DJI AGRAS T25 can easily be handled by one person. It can carry a spraying payload up to 20 kg[1] or a spreading payload up to 25 kg[1]. DJI AGRAS T25 is equipped with Front and Rear Phased Array Radars, a Binocular Vision System, and a high resolution FPV gimbal camera. DJI AGRAS T25 supports multiple missions, from surveying[2] to spraying and spreading and excels across a variety of terrains.

*The appearance of the product is subject to the actual product.

Light and Nimble

Foldable and simple for solo operation
Small for easy takeoff and landing

Spray or Spread

20 kg spraying tank[1], 16 L/min flow rate[3]
25 kg spreading tank[1], 72 kg/min flow rate[4]

Signal Stability

Offline operations
2 km O3 Transmission
Optional DJI Relay

All Scenario Adaptability

Fully automatic and manual operation
Orchard Mode
Variable Rate Application

Multidirectional Obstacle Sensing[6]

Multidirectional Obstacle Avoidance
Terrain Following up to 50°

Four Sprinkler Kit (Optional)

Reverse Directional Spray During Flight
4-sprinkler spraying, flow rate 24 L/min[3]

DJI AGRAS T25
DJI AGRAS T25

Capabilities per hour

Foldable, Flexible, Functional

DJI AGRAS T25 FOLDABLE

DJI AGRAS 25 adopts a lightweight, foldable design. Optimized for solo operations, its unfolded dimensions have been reduced by 21% compared with its predecessor[11]. Transport, fold, takeoff, and land with flexibility.

Additional Sprinklers to Simplify Spraying

DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprinklers for four sprinkler spraying[12]. When flying manually, use Reverse Directional Spray to simplify operations without having to make turns. DJI AGRAS T25 is equipped with a high-resolution FPV gimbal camera which enables viewing the surrounding environment in real time for safer operations.

Spraying System

High Rate, Atomized Spray, Leak Free

DJI AGRAS T25’s Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume, increasing spraying scope, operation efficiency, and leaf coverage.

Magnetic Drive Impeller Pump

Dual pump flow rate of up to 24 L/min[3]. This is a 100% increase compared with the previous generation, to meet demands of fields, orchards, and high-temperature environments.

Dual Atomizing Centrifugal Sprinklers

Droplet size can be adjusted between 50-500 μm, depending on the chemicals used.

Brand-New Solenoid Valves

Precision starting and stopping eliminates leaking.

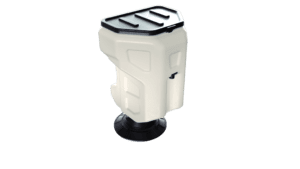

DJI AGRAS T25 Spreading System[1]

Spread with Speed

DJI AGRAS T25’s new spreader and spiral channel spinning disk significantly improve spreading efficiency and smoothness.

25 kg Payload[1]

35 L max capacity and an expanded loading gate for quick refills.

Uniform Spreading

DJI AGRAS T25’s spiral channel spinning disk makes spreading more uniform.

Real-Time Weighing

DJI AGRAS T25 is equipped with a weighing sensor which allows you to monitor the remaining payload in real time.

Fast Disassembly and Cleaning

The spreader can be quickly disassembled and cleaned for easy maintenance.

Tested for reliability, durability, and safety

Spraying and spreading operations are frequent, intense, and take place in complex environments. DJI AGRAS T25 has passed hundreds of reliability tests and its main body is durable to help ensure safe operation.

Double your peace of mind
with Binocular Vision and Dual Radar

DJI AGRAS T25 is equipped with front and rear Active Phased Array Radars with double the number of RF channels[18] for higher detection precision. Together they enable Multidirectional Obstacle Sensing[6], elevating operating safety. Two sets of Binocular Vision sensors enable DJI AGRAS T25 to accurately sense terrain and depict obstacles in detail, for automatic obstacle bypassing[13] and Terrain Following[13] over steep slopes.

Obstacle Detection
Terrain Projection
Obstacle Bypassing

One drone for surveying[2], spraying, and spreading

DJI AGRAS T25 integrates aerial surveying[2], spraying, and spreading into a single drone. A high-resolution FPV gimbal camera enables real-time capture of field and orchard images. Paired with DJI RC Plus and RTK service, you can generate high definition maps which underpin subsequent automated flight routes. DJI AGRAS T25 can take off and perform automated operations, all at the push of a button.

Orchard Aerial Survey[2]

DJI AGRAS T25 supports obstacle bypassing and Terrain Following for surveying[2] of orchards on slopes up to 20°[5]. With DJI RC Plus and its real-time mapping capabilities, it can automatically identify fruit trees and obstacles. Based on the distribution of the fruit trees, it can generate accurate and fully automatic 3D flight routes.

5 hectare orchard mapped in 10 minutes[12]

Orchard 3D Map

Field Aerial Survey[2]

Area Route
13 hectare field mapped in 10 minutes[14]

Survey the entire field, automatically identify field boundaries and obstacles, and plan more precise flight routes.

Boundary Route
13 hectare field boundary mapped in 3 minutes[14]

Suitable for fields without obstacles in the middle.

Remote Controller with a large high brightness screen

The 8-core processor provides powerful computing power and makes operations smoother. Intelligent route planning reduces the number of ineffective flights with full load and greatly increases operation efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. The manual mode allows you to control operations at will.

Multi Plot Operations
Orchard Route Segmentation

New Features

Signal Stability

The new and upgraded quad-antenna O3 Transmission system works offline even in areas without cellular coverage, offering a transmission range of 2 km [13]. Its anti-interference ability helps ensure high signal quality during operations over tall crops.

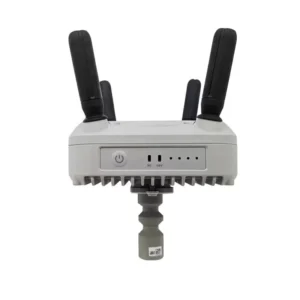

DJI Relay (Optional)

DJI Relay ensures smooth real-time video transmission for safer flights even in complex operation scenarios with signal obstructions.

Fuel-Efficient Fast Charging

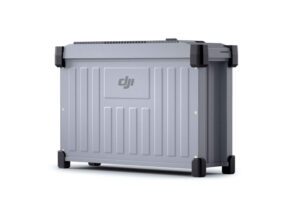

The D6000i Multifunctional Inverter Generator delivers efficient inversion and rectification, maximizing fuel economy. The DB800 Intelligent Flight Battery supports ultra-fast charging[7] in 9 minutes. The C8000 Intelligent Charger can charge batteries directly with utility power.

DB800 Intelligent Flight Battery

Capacity increased to 15.5 Ah

Up to 1,500 charging cycles [15]

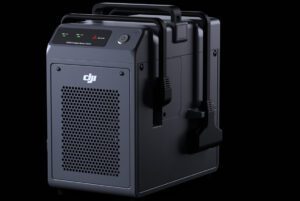

C8000 Intelligent Power Supply

Up to 7,200 W charging[16]
Dual-channel alternated charging
Power-adaptative protection

Smart Agriculture Ecosystem

Pair DJI AGRAS T25 with the new Mavic 3M and leverage multispectral data to minimize inputs and maximize yields. Survey your farm and generate prescription maps to guide variable rate fertilization and crop protection. Quickly patrol fields to identify growth stress.

GR VAT is not included. Battery and Charger are not included.

For more information email us:

info@flydrops.gr

Notes

*The appearance of the product is subject to the actual product.
[1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The take-off payload weight needs to be reduced by 5 kg for every 1,000 m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
[2] RTK is required.
[3] Maximum spraying flow rate with two sprinklers is 16 L/min. Maximum spraying flow rate with four sprinklers is 24 L/min.
[4] Data measured with 4 mm diameter urea. The maximum flow rate may vary depending on the granule size, density, and surface smoothness of different fertilizers.
[5] To ensure a high success rate of surveying and mapping, DJI AGRAS T25 can automatically adjust its flight speed based on the hill slope. The steeper the slope, the slower its speed.
[6] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used for Terrain Follow and Altitude Stabilization. The sensing in other directions is used for Obstacle Avoidance.
[7] Charging from 30% to 95%. Factors impacting charging time: Altitude of the charging station; Charging cable meets requirements for fast charging; Battery cell’s temperature is in the range of 15° to 70° C (59° to 158° F)
[8] It was measured at a flight altitude of 2.5 meters, without obstruction or electromagnetic interference.
[9] Data was measured with the DJI DJI AGRAS T25 and may vary based on operating environment and parameters. Flight parameters for this test: Dosage of 15 L/ha, spraying width of 7 m, flight speed of 6.5 m/s, and height of 2.5 m.
[10] Data was measured with urea and may vary by granule type, operating environment, and parameters. Spreading parameters for this test: Dosage of 150 kg/ha, spreading with of 8 m, flight speed of 10 m/s, height of 4 m, and spinning disk speed of 1,000 r/min.
[11] Size comparison between the unfolded DJI AGRAS T25 and the unfolded T20P.
[12] Requires the purchase of two additional centrifugal nozzles.
[13] Obstacle Bypassing is supported in the forward direction. The Terrain Follow and Obstacle Bypassing features are not supported at night or in low light environments. Fly with caution. Obstacle Bypassing is not recommended around electric or guy wires.
[14] Refers to the mapping time after completing the aerial survey. Time varies depending on the firmware version, type of aerial survey, and other factors.
[15] Batteries are covered by warranty for up to 1,500 charging cycles or 12 months, whichever ends first.
[16] Compared with third-party general-purpose generators equipped with an intelligent charger.
[17] Each AC cable of the C8000 Intelligent Charger must be connected to an AC socket or extension socket with a rated current greater than 16 A.
[18] Compared with T20P Omnidirectional Active Phased Array Radar.
[19] Generator only available in select countries and regions. Please contact your local dealer for more details.elect countries and regions. Please contact your local dealer for more details.
